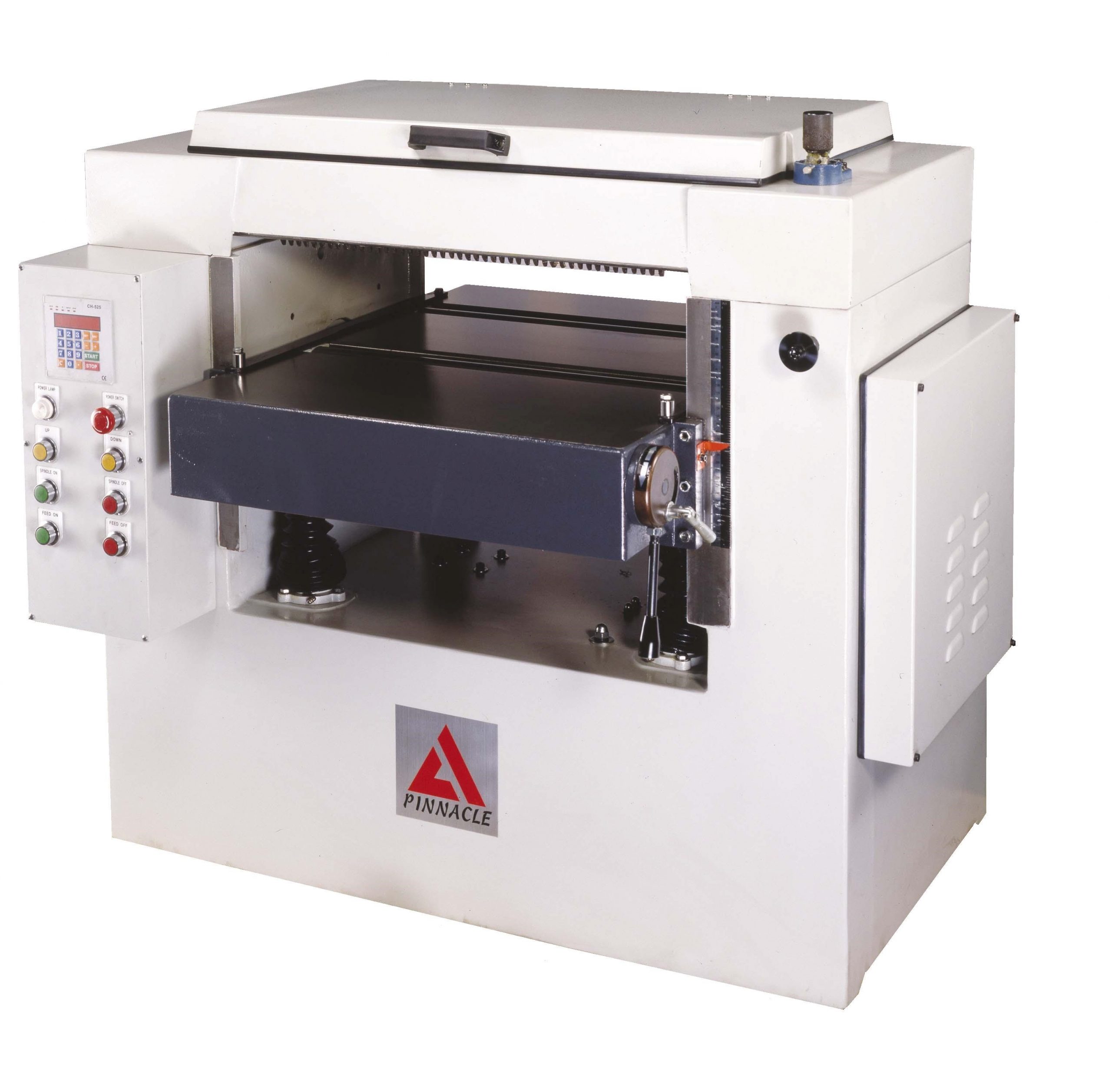

Suitable for heavy duty planing applications.
Heavy cast iron base and frame provides excellent machine stability.
Sectional chip breaker assembly and in-feed roller.
Powered table elevation for convenient setting depth of cut.
Magnetic starters for motors.
Helical cutter head provides noise reduction (up to 60% quieter operation).
Easier cutter changeover with superior quality cuts and longer blade life due to shear cutting action.
Variable speed stock feed system with separate motor
Extra heavy construction (1800 lbs.).

• Table Area 34-5/16” x 26-31/32” (870 mm x 685 mm)
• Maximum work piece Planing Width 24-13/16” (630 mm)
• Maximum work piece Planing Thickness 11-3/4” (300 mm)
• Maximum thickness of Cut 5/16” (8 mm)
• Minimum work piece Planing Thickness 1/4” (7.5 mm)
• Minimum work piece Planing Length 8-11/16” (220 mm)
• Cutter head Speed 4800 RPM
• Stock Feeding Speed 20 to 36 FPM
• Table Raising Motor 1/2 HP, 220 Volt, 3 Phase
• Stock Feeding Motor 2 HP, 220 Volt, 3 Phase
• Cutter head Motor 10 HP, 220 Volt, 3 Phase
• Dust Collection 2 ports x 5”
• Net /Gross Weight 1800lbs (820 kg), 2025lbs (920 kg)
• Overall Dimensions 44”L x 50”W x 58”H. Delivery extra
