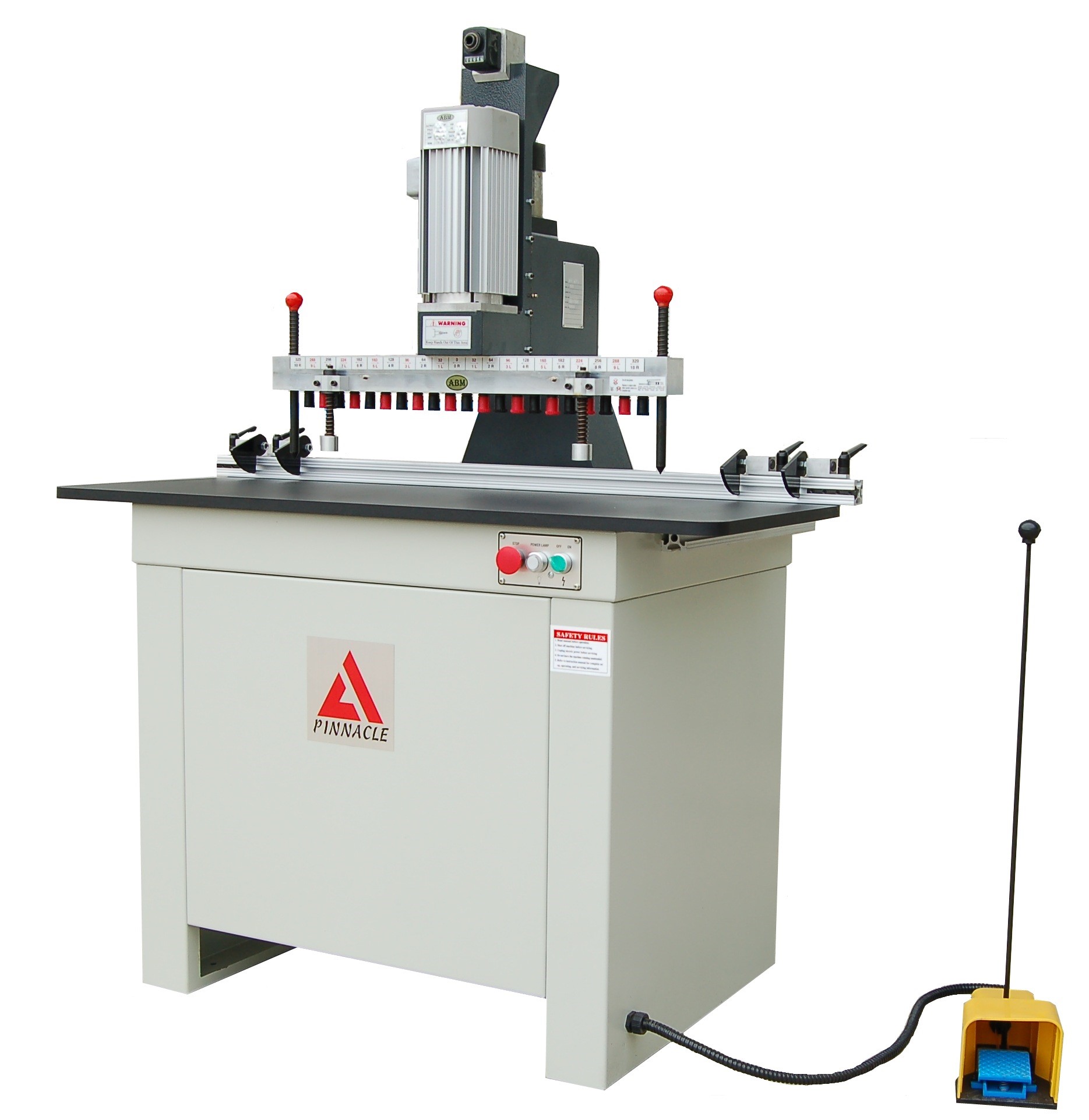

The Pinnacle BM-21V line boring machine has everything needed to do 32mm line boring. It’s ideal for drilling shelf supports, hinges, etc. The BM-21V features a powerful 2.5HP Motor that starts only when the pneumatic feed cycle is activated by the foot pedal, extending the service life and conserving power. Steel gears transmit plenty of power to the spindles at 2450 rpm. The large 20” x 47” table provides plenty of work support and slides on two tracks, keeping the fence parallel to the head at all times. A 60” fence with 4 flip stops locates material with precision. Two manual head mounted index pins provide precise positioning of longer stock.

• 2HP 230V 1 Phase or 2,5P 230V 3 Phase motor
• 21 spindle gear driven drill head with hardened steel gears
• Spindle centers
• 11 right hand and 10 left hand spindles
• 10mm quick change spindle chucks
• 2450 RPM Spindles
• Head mounted index pins
• 0 to 2” drilling depth stroke
• 60” adjustable offset back fence
• 4 adjustable fence stops
• 6” maximum back fence offset
• 390lbs
• L49” x W24” x H63”
