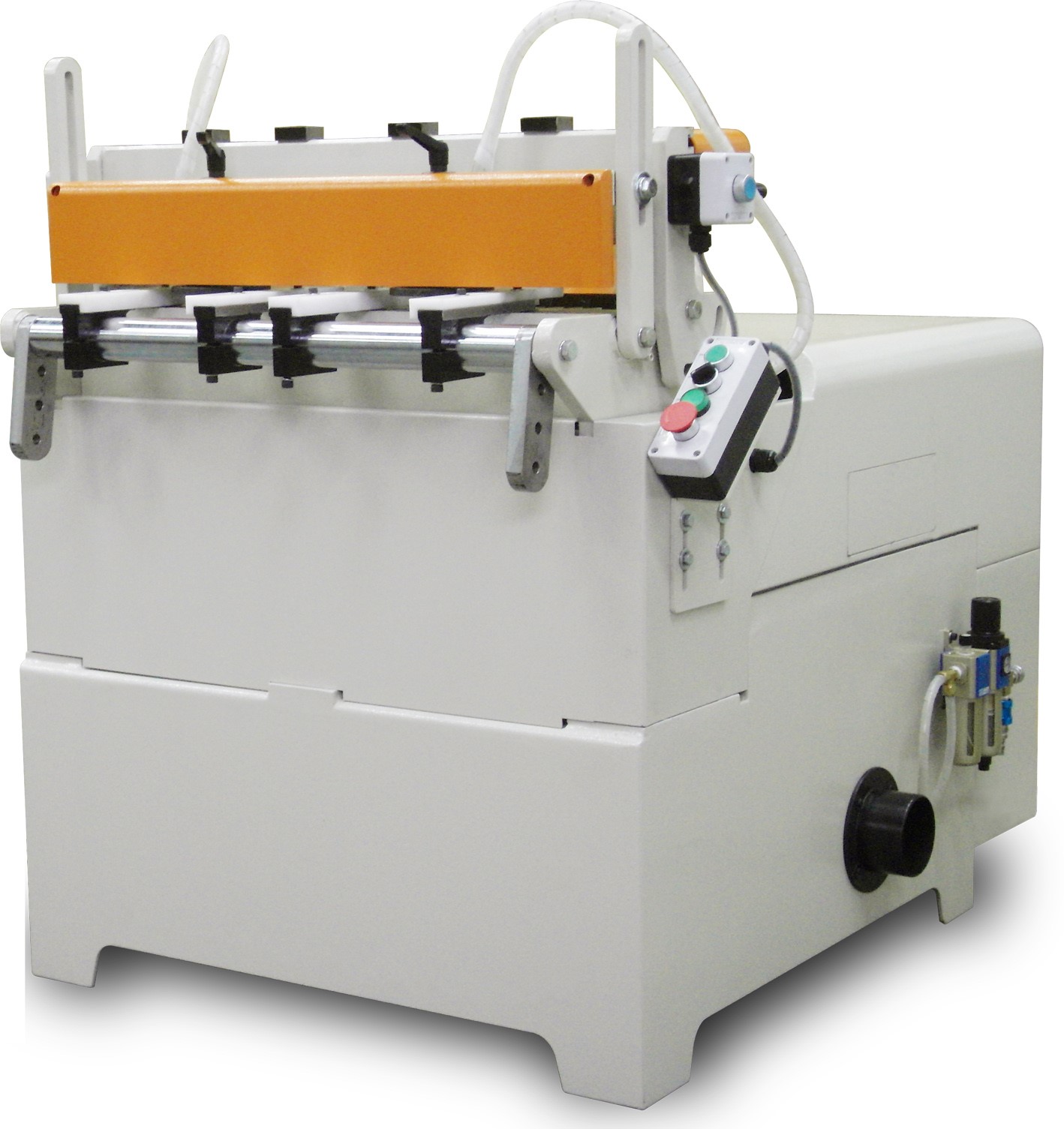

Pinnacle T2

The multiple milling machine Pinnacle T2 machines world class dovetails. The drawer sides, fronts, and backs are dovetailed from the same carbide tipped tooling assuring a tight dovetail fit. The machine is equipped with a unit of 12 spindles with equal mill cutters that allow the production of dovetails of different heights. The machine can cut single male or female work pieces in manual mode and male/female pieces automatically. The locking of the pieces takes place pneumatically at the beginning of each cycle. The same takes place for the release of the work piece at the end of each cycle. The controls are located on a built in control panel.

Categories: , . Tags: , , , .
  • Main motor 5HP 220V 3 Phase
  • 12 Dovetail Spindles
  • Cutter Speed 16000 RPM
  • Working Range 3/8” to 1”
  • Maximum width work piece 24-1/4”
  • Net weight 1465lbs
  • Machine Size (LxWxH) 4’ x 3.3’x4.35’
  • Weight 2930lbs

Complete with:

  • 1 set of Dovetail cutters
  • Tools & manual kit
  • CSA Electrical components
